Furnace Blower Motor

Home >  Products >  AC Motor >  Furnace Blower Motor

DL1056 Direct Drive Blower Fan Motor 1/2 HP 1075RPM 3 Speed 115V

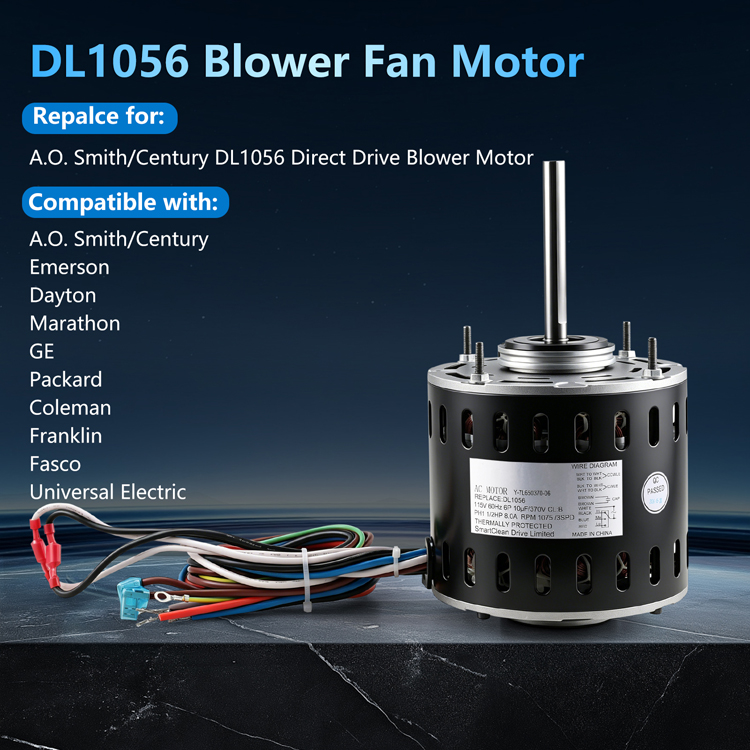

Blower Fan Motor, Replace A.O.Smith/Century DL1056 GE 3587 Fasco D701 D902 Emerson 1224 8894 Marathon X004/Franklin/Dayton Motor, 8.0A 48 Frame

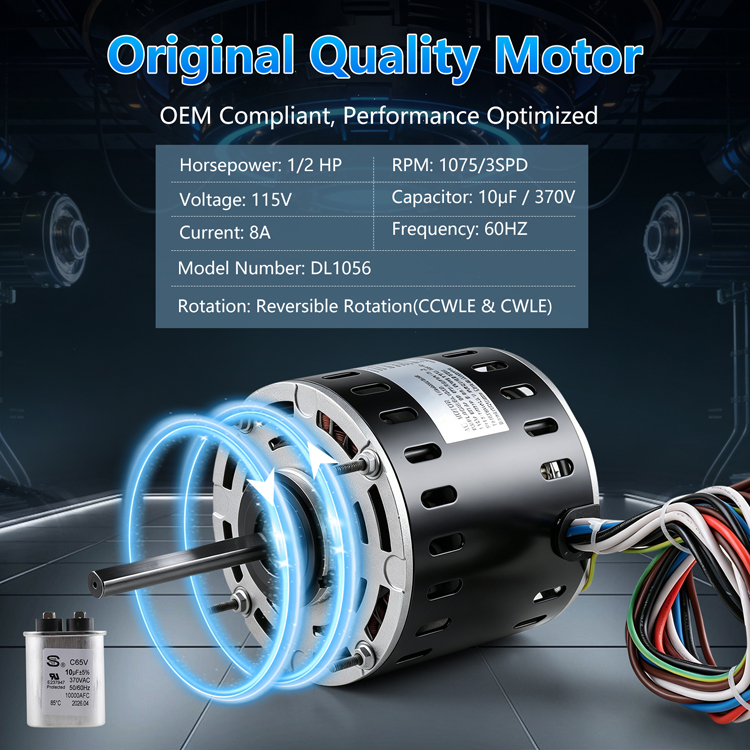

  • Model Number: DL1056
  • Power Source: 115V/60Hz, 1PH
  • Rated Power: 1/2 HP
  • Current: 8.0A
  • RPM: 1075rpm / 3 Speeds
  • Capacitor: 10μF / 370V
  • Bearing: Ball Bearing (Quiet Running)
  • Motor Core: Pure Copper Winding (Long life)
  • Size: 5.63" Diameter - 48 Frame, 1/2" x 3.5" Shaft

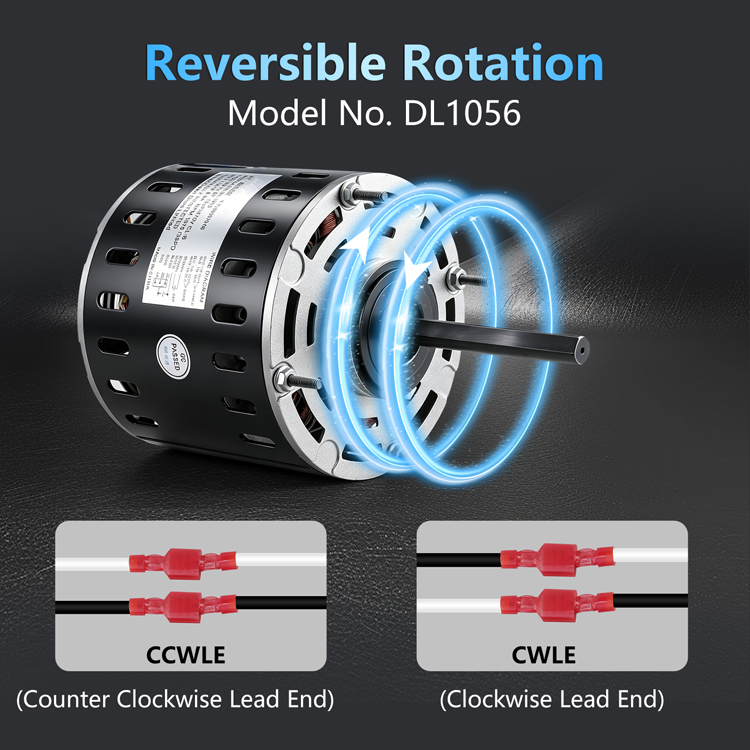

  • Rotation: Reversible (CW or CCW)

Introduction

DL1056 Direct Drive Blower Fan Motor 1/2 HP 1075RPM 3 Speed 115V

Highlights:

1. Upgraded Design:

This is a high-quality upgraded fan motor, made from premium materials, capable of long-lasting and reliable operation in harsh environments. It drives the AC fan and furnace blower to achieve optimal HVAC circulation, operates quietly, and features thermal protection and permanent lubrication to prevent overheating, reduce malfunctions, and extend service life.

2. Direct Replacement & Fasco / Emerson Compatible Models:

Direct replacement part numbers: 321P468, 323P120, 323P206, F48SL6MA18, F48SP6L11, F48SQ6L4, 321P078, 321P079. This motor is compatible with Fasco D701, D902, as well as Emerson 1224, 8894, 3844, 807, K55FYGDJ3826, K55FYJRT5389, K55HXCTW3340, K55HXDEN2169, K55HXDEW2169, K55HXEEH2715, K55HXFBK3236, K55HXFWR3683

3. Cross-Brand Compatibility List:

It also fits multiple brands including Franklin (8746310190, 8746410280), GE (3587, 3991, 5KCB39MG7840, 5KCP39EG3229, 5KCP39KG5901, 5KCP39KG9078, 5KCP39KG950), Dayton (3M142, 3M655, 3M817, 3M855, 3M976, 3M442, 3M444), Carrier/BDP (HC43680001, HC43ME116, P257-8587, P257-8387) and Fedders (71057, S1940081001), and more.

4. Specifications:

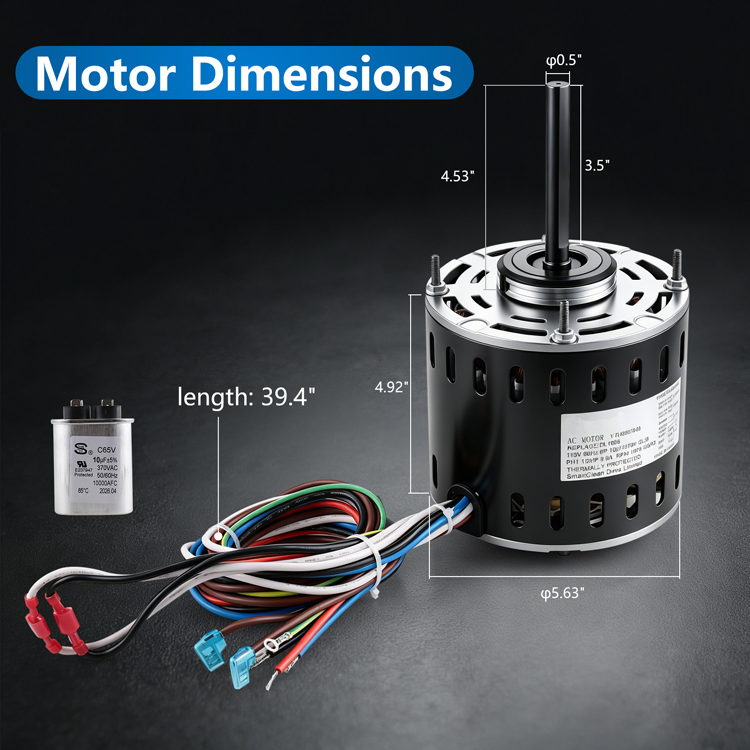

Equipped with 1/2 HP, 115 volts, 1075 RPM and 3 adjustable speeds, Reversible Rotation, 8.0 A, 60 Hz, 3-Speed, with 1 piece of 10μF/370V capacitor. Motor diameter 5.63 inches, shaft diameter 1/2 inch, shaft length 3.5 inches. With 39.4-inch color-coded extended leads, this motor offers ample wiring length for flexible routing and neat connection layout.

5. Durable & Reliable:

Constructed with high-quality materials and self-aligning bearings. Thermally protected motor design helps prevent overheating and extends service life for dependable operation.

6. Warranty and Safety Guide:

We fully stand behind product quality with a 5-year warranty, letting you shop with complete confidence. For safety reasons, always disconnect power to the unit before repair or replacement. Professional installation by a qualified HVAC technician is strongly recommended to avoid electric shock, personal injury or equipment damage

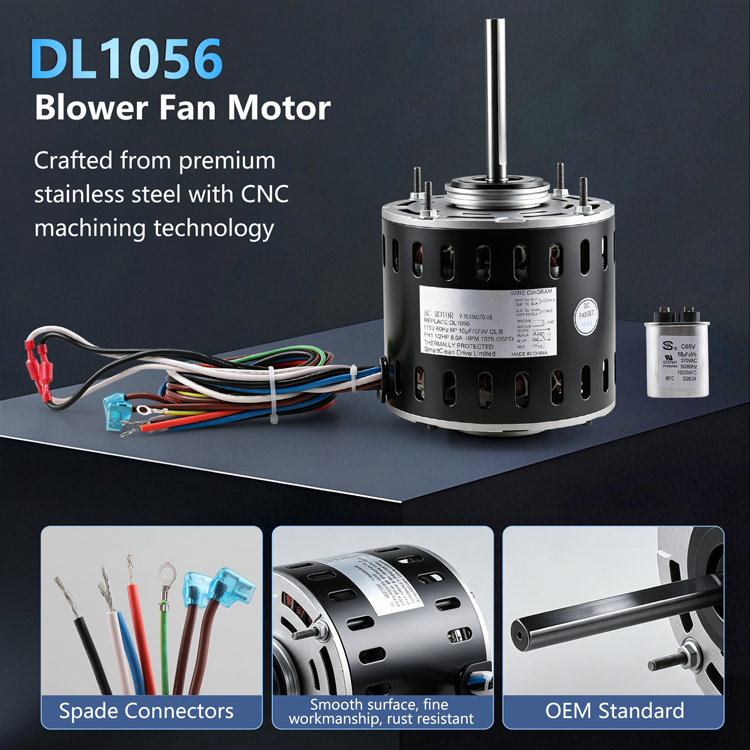

主图-2-修改型号.jpg主图-4(5d01c28f8b).jpg主图-3(a9c3c97a2e).jpg主图-6(2647517f6c).jpg主图-5.jpg主图-7.jpg主副图-电机通用图-安静.jpg


POWERSTAR DL1056 Direct Drive Blower Fan Motor 1/2 HP 1075RPM 3 Speed 115V

The POWERSTAR DL1056 direct drive blower fan motor 1/2 HP 1075RPM 3 speed 115V is engineered to deliver dependable airflow and consistent performance across residential and commercial HVAC systems. As a purpose-built blower fan motor, the DL1056 provides reliable operation with a compact footprint and straightforward installation. This blower fan motor offers exceptional value where efficiency, durability, and compatibility are essential. Combining advanced motor design with rigorous manufacturing standards from Zhongshan Powerstar Motor Manufacturing Company, this direct drive HVAC component provides modern solutions for retrofit and new construction applications.



Product Overview and Key Specifications

The DL1056 direct drive blower fan motor is a 1/2 HP, 1075 RPM motor designed to operate at 115V with three selectable speeds. As an energy-efficient motor, it reduces electrical consumption while maintaining strong torque for sustained air delivery. This blower fan motor is optimized for a wide range of HVAC blower housings and fan assemblies. The 115V 3-speed blower design allows simple field adjustments to match system airflow requirements without compromising motor longevity. In summary, the core specifications center on direct drive simplicity, three-speed flexibility, half-horsepower capacity, and a nominal 1075 RPM operating speed that balances airflow and noise.



Design Advantages and Technical Innovation

The POWERSTAR DL1056 direct drive blower fan motor delivers a host of design and technical advantages that support prolonged, trouble-free operation. As a direct drive HVAC solution, it eliminates the need for belts and pulleys, reducing maintenance intervals and minimizing mechanical losses. The direct drive blower fan motor concept improves mechanical reliability and streamlines installation, allowing technicians to install or replace the motor more quickly and with fewer alignment concerns.



This energy-efficient motor employs precision-balanced rotors and optimized winding configurations to reduce current draw while preserving torque across all three speeds. The result is a blower fan motor that consumes less electricity and produces less heat, supporting longer life and quieter operation. The 115V 3-speed blower capability provides flexibility: low speed for energy-saving continuous circulation, medium speed for comfort conditioning, and high speed for peak load demands.



Manufacturing Quality and Certifications

Manufactured by Zhongshan Powerstar Motor Manufacturing Company, the DL1056 direct drive blower fan motor meets international quality and safety standards. POWERSTAR’s factories adhere to strict production controls and testing protocols, ensuring consistent performance for every blower fan motor produced. The company’s experience in motor and fan design, development, and production since 2012 is reflected in the DL1056’s robust construction. Certified to recognized standards, this energy-efficient motor is suitable for global markets and diverse installation contexts where adherence to CE, CCC, or ETL expectations is required.



Applications and Use Cases

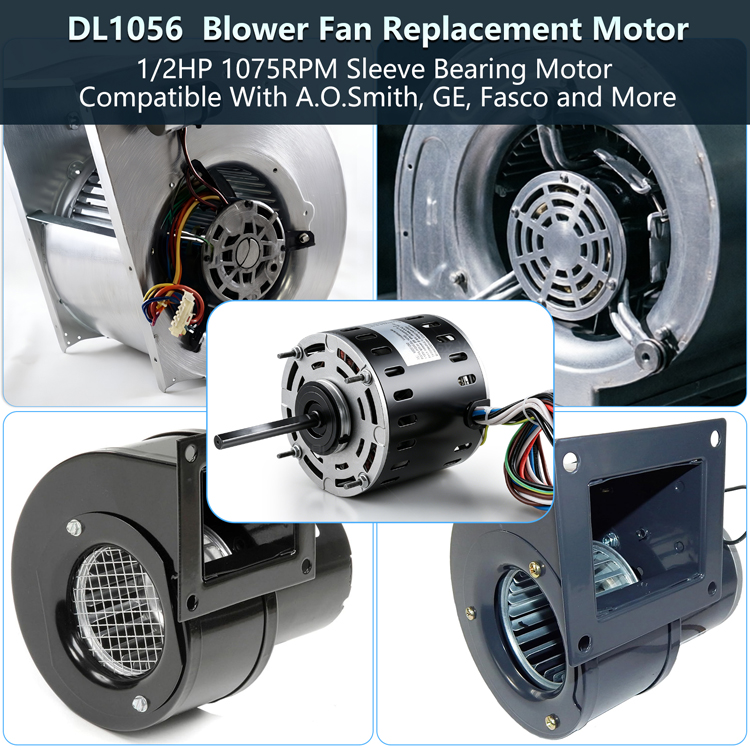

The DL1056 direct drive blower fan motor is ideal for residential furnaces, air handlers, rooftop units, and packaged HVAC systems that require a trustworthy blower fan motor with straightforward speed selection. Its direct drive design makes it a natural choice for HVAC contractors and maintenance teams performing retrofits or replacements on units that historically used belted motors. Because it is an energy-efficient motor, the DL1056 is especially well-suited for installations where reducing operational costs and improving system efficiency are priorities. The 115V 3-speed blower compatibility makes the unit versatile enough for small commercial systems and multi-zone residential configurations.



Performance and Operational Benefits

Performance-wise, the DL1056 direct drive blower fan motor provides stable airflow at the rated 1075 RPM speed while allowing lower and higher speed settings for operational tuning. The three-speed selection maximizes adaptability: lower speed options allow for quieter and more economical operation when full capacity is not needed, while higher speed delivers stronger airflow for quick temperature correction or heavy-duty conditions. An energy-efficient motor design means lower electrical consumption over the life of the motor, translating to tangible cost savings for building operators and homeowners.



Durability and Maintenance

Built with components chosen for long life under continuous duty, the DL1056 direct drive blower fan motor minimizes downtime and service calls. The elimination of belts reduces routine maintenance and prevents common belt-related failures. Bearings, insulation, and winding protections are selected and tested to withstand typical HVAC stressors, ensuring that the blower fan motor remains reliable in seasonal cycles and continuous operation scenarios. For service professionals, the 115V 3-speed blower configuration simplifies troubleshooting and reduces time spent on system balancing, as speeds can be changed quickly to determine optimal settings


Installation and Compatibility

POWERSTAR designed the DL1056 direct drive blower fan motor for straightforward installation with standard mounting patterns and electrical connections. The 115V 3-speed blower features accessible wiring terminals and clearly marked speed selections to reduce installation errors. Because it is a direct drive blower fan motor, installers do not need to reconfigure pulley systems or perform complicated alignments. The motor interfaces cleanly with most common blower wheels and housings, making it suitable for replacement projects where minimizing system downtime is a priority


Energy Efficiency and Environmental Impact

As an energy-efficient motor, the DL1056 direct drive blower fan motor contributes to reduced energy consumption and lower greenhouse gas emissions associated with building operations. The motor’s optimized electrical characteristics and mechanical efficiency reduce the overall energy footprint of heating and cooling systems. For facility managers and homeowners focused on sustainability and cost control, the 115V 3-speed blower provides measurable improvements in operational efficiency without sacrificing performance.



Why Choose POWERSTAR DL1056

Choosing the POWERSTAR DL1056 direct drive blower fan motor means selecting a product backed by a company with over a decade of expertise in motor and fan manufacturing. Zhongshan Powerstar Motor Manufacturing Company focuses on consistent quality, rigorous testing, and international compliance, which ensures the DL1056 is a reliable choice for HVAC professionals and end users. The direct drive blower fan motor design reduces maintenance needs, the energy-efficient motor characteristics lower operating costs, and the 115V 3-speed blower flexibility ensures suitability across many applications


Conclusion

The POWERSTAR DL1056 direct drive blower fan motor 1/2 HP 1075RPM 3 speed 115V represents a practical, efficient, and durable solution for modern HVAC systems. This blower fan motor blends direct drive simplicity with energy-efficient performance and three-speed versatility, making it a strong candidate for retrofit and new installations alike. Backed by POWERSTAR’s manufacturing expertise and international quality standards, the DL1056 offers HVAC professionals and facility managers a dependable option to improve system reliability, reduce maintenance, and optimize operational efficiency.
