Furnace Blower Motor

Home >  Products >  AC Motor >  Furnace Blower Motor

DL1036 Blower Fan Motor 1/3 HP 1075 RPM 3 Speed 115V 5.0A 48 Frame Motor

Direct Drive Blower Motor Replace A.O.Smith 323P919, Fasco D924 D727, GE 3585, Dayton 3M653, Emerson 2482 384

  • Model Number: DL1036
  • Power Source: 115V/60Hz, 1PH
  • Rated Power: 1/3 HP
  • Current: 5.0A
  • RPM: 1075rpm / 3 Speeds
  • Capacitor: 7.5μF / 370V
  • Bearing: Ball Bearing (Quiet Running)
  • Motor Core: Pure Copper Winding (Long life)
  • Size: 5.63" Diameter - 48 Frame, 1/2" x 3.5" Shaft

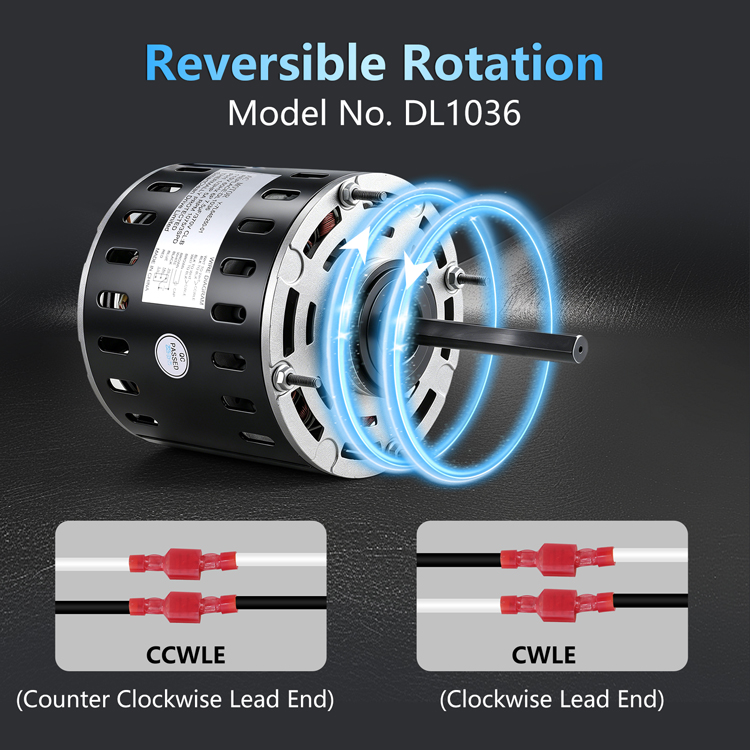

  • Rotation: Reversible (CW or CCW)

Introduction

DL1036 Blower Fan Motor 1/3 HP 1075 RPM 3 Speed 115V 5.0A 48 Frame Motor


Highlights:

1. Upgraded Design:

This is a high-quality upgraded fan motor, made from premium materials, capable of long-lasting and reliable operation in harsh environments. It drives the AC fan and furnace blower to achieve optimal HVAC circulation, operates quietly, and features thermal protection and permanent lubrication to prevent overheating, reduce malfunctions, and extend service life.

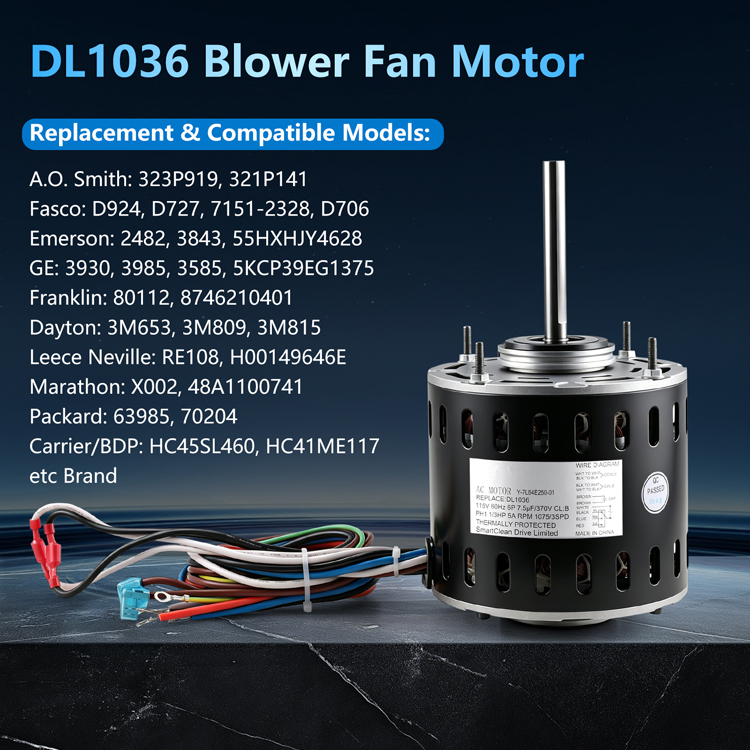

2. Compatible Replacement Models:

Compatible with A.O. Smith 323P919, 321P141, 321P467, 323P159,17F62, F48H07A01, F48SL6MA21, Compatible with Fasco D924, D727, D706, Compatible with Emerson 2482, 3843, K55HXBETA2168, K55HXDHT2260, K2482, 1864, compatible with Franklin 80112, AW64140A, CY6732A, CY6814A, CY6949A

3. Cross-Brand Compatibility List:

Compatible with GE 3930, 3985, 3981, 5KCP39EG1375, 5KCP39EG7490S, 5KCP39HGD511, 5KCP39KGE564, 5KCP39MGG400 5kcp39hgdd696s, compatible with Dayton 3M6 53, 3M809, 3M815, 3M650, 4KA34, compatible with Carrier/BDP HC45SL460, HC41ME117, HC41DE120, compatible with Fedders CUG065, CUG080N2B, S19900018001, etc.

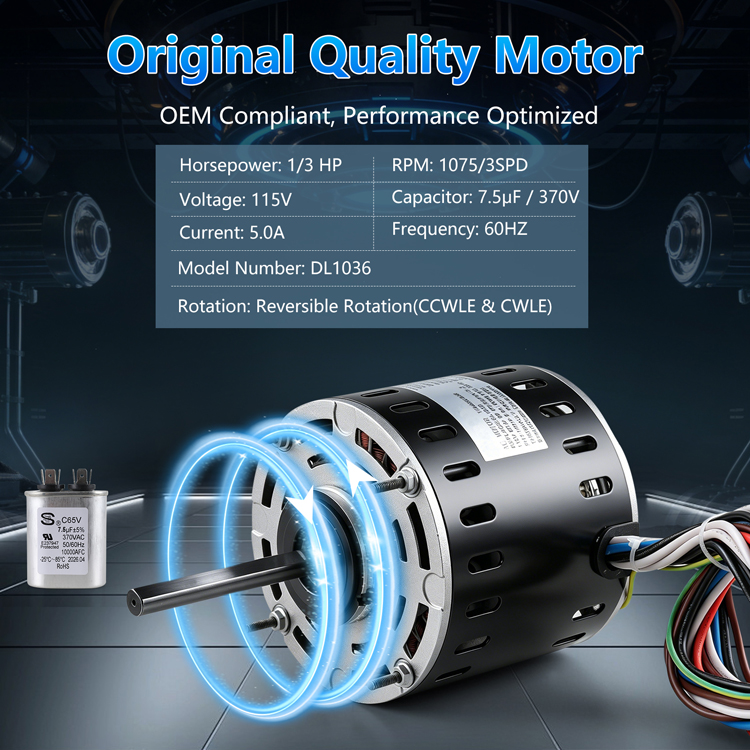

4. Specifications:

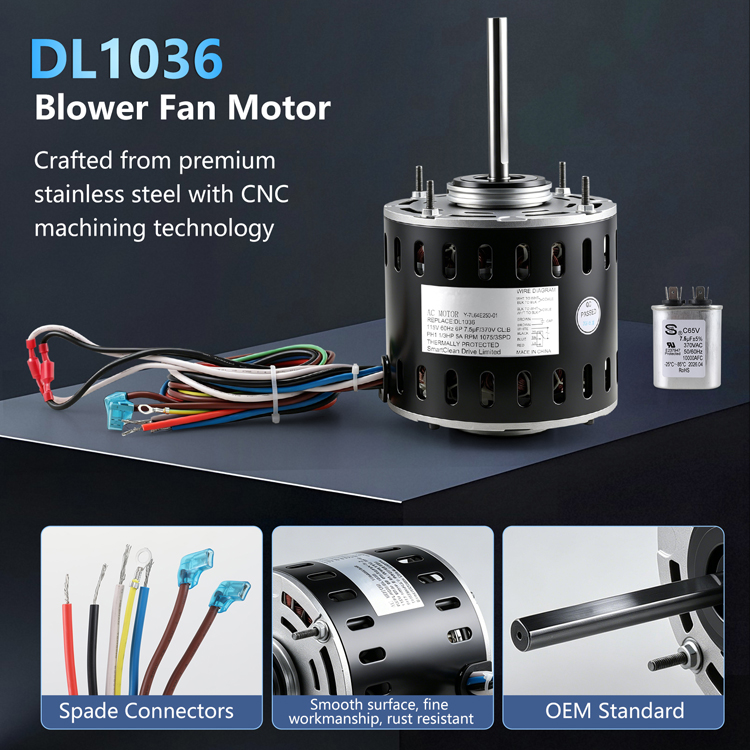

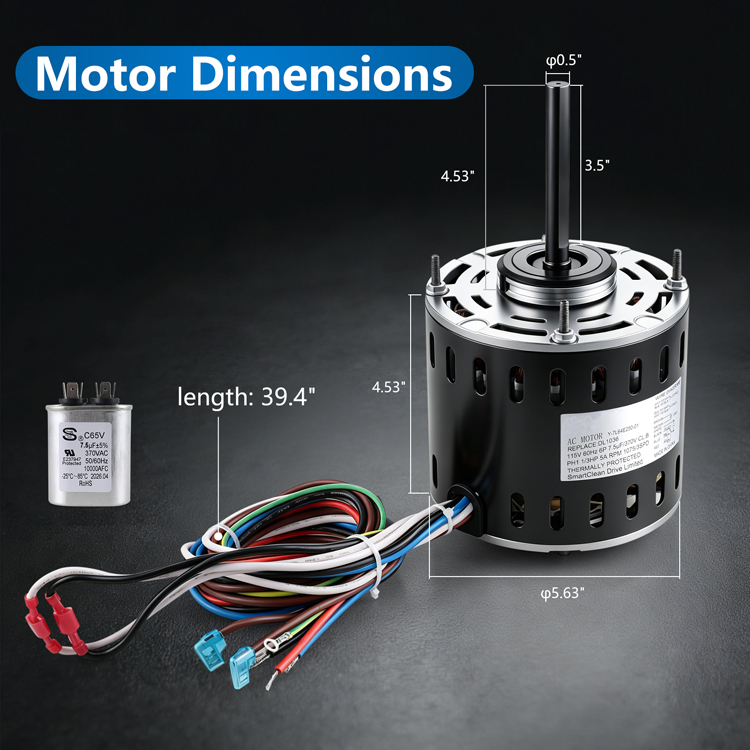

Equipped with 1/3 HP, 115 volts, 1075 RPM and 3 adjustable speeds, Reversible Rotation, 5.0 A, 60 Hz, 3-Speed, with 1 piece of 7.5μF/370V capacitor. Motor diameter 5.63 inches, shaft diameter 1/2 inch, shaft length 3.5 inches. With 39.4-inch color-coded extended leads, this motor offers ample wiring length for flexible routing and neat connection layout.

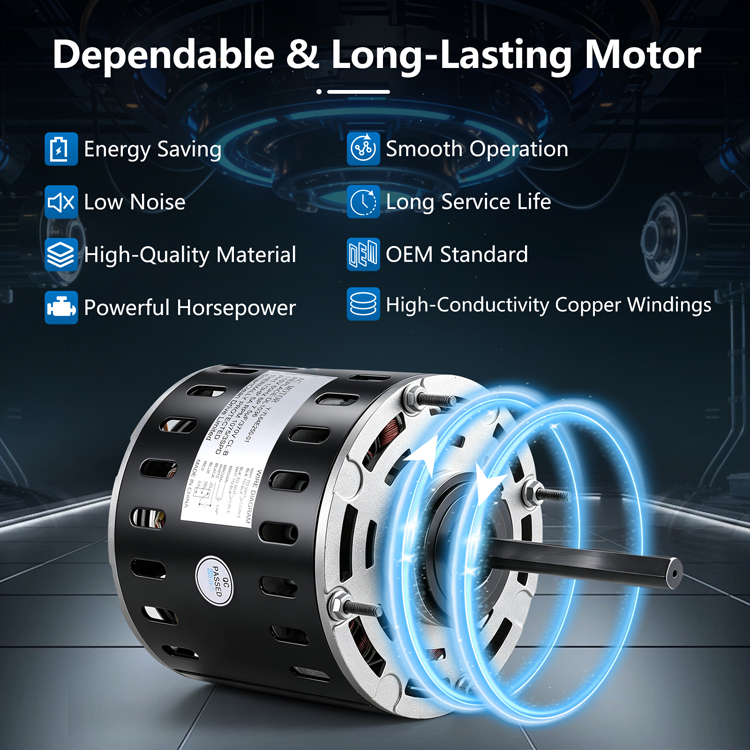

5. Durable & Reliable:

Constructed with high-quality materials and self-aligning bearings. Thermally protected motor design helps prevent overheating and extends service life for dependable operation.

6. Warranty and Safety Guide:

We fully stand behind product quality with a 5-year warranty, letting you shop with complete confidence. For safety reasons, always disconnect power to the unit before repair or replacement. Professional installation by a qualified HVAC technician is strongly recommended to avoid electric shock, personal injury or equipment damage


主图-2(e6e7f2e01e).jpg主图-4(a5cbcd9f86).jpg主图-3(e6fc958b98).jpg主图-5(16bf86a9e4).jpg主图-6(f89d31ae53).jpg主图-7.jpg主图9.jpg主图-8.jpg


POWERSTAR presents the DL1036 blower fan motor — a robust, reliable, and efficient 1/3 HP motor engineered for demanding HVAC and ventilation applications. The DL1036 blower fan motor combines thoughtful mechanical design, durable materials, and precise electrical engineering to deliver consistent performance where it matters most. Built to meet rigorous international standards and backed by POWERSTAR’s manufacturing expertise, this 1/3 HP motor is ideal for residential, commercial, and light industrial blower systems that require dependable airflow and energy savings.



Key Features and Specifications

The DL1036 blower fan motor is a 1/3 HP motor with a rated speed of 1075 RPM and three selectable speeds for flexible system tuning. Operating at 115V and drawing 5.0A, the motor is designed for straightforward integration into standard blower and fan assemblies. Its 48-frame construction provides a compact footprint while maintaining mechanical stability and extended bearing life. As a CE certified blower motor, the DL1036 meets critical safety and electromagnetic compatibility requirements for global markets. For installers and system designers seeking a 1/3 HP motor with proven specifications, the DL1036 offers a balanced combination of torque, efficiency, and controllability.



Performance and Efficiency

Performance is the hallmark of the DL1036 blower fan motor. The three-speed design allows HVAC systems to match airflow to load conditions, reducing unnecessary runtime and improving overall energy efficiency. With the efficiency expectations of an energy-efficient HVAC motor, the DL1036 minimizes electrical consumption for continuous and intermittent blower operation. The motor’s electrical characteristics — 115V and 5.0A — are optimized to provide stable torque at low and medium speeds, ensuring fans maintain steady airflow even under varying system resistance. For facilities and homeowners focused on lowering operating costs, this blower fan motor contributes directly to reduced energy usage and improved system longevity.



Applications

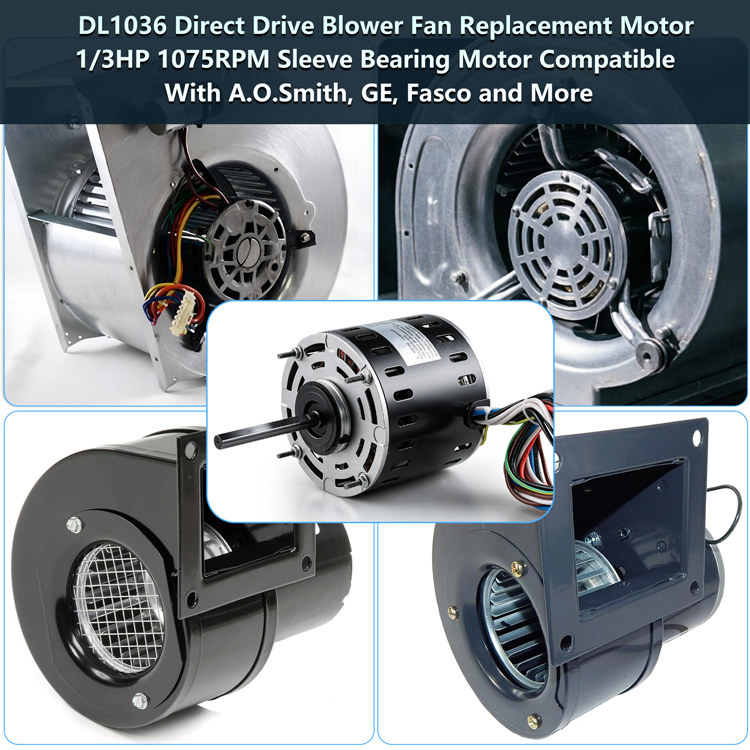

The DL1036 blower fan motor is engineered for broad applicability across HVAC, ventilation, and air movement equipment. Typical use cases include furnaces, air handlers, rooftop units, commercial ventilation systems, and custom blower assemblies. Its 1/3 HP rating makes it suitable for mid-sized blowers where consistent volumetric flow is required. The motor’s 48 frame and compact dimensions fit readily into many blower housings, allowing retrofit opportunities and facilitating new system designs that aim for space-efficient motor mounts. As a CE certified blower motor, the DL1036 is also suited for projects with international compliance needs, offering builders and OEMs confidence in regulatory compatibility.



Design Innovations and Mechanical Advantages

POWERSTAR’s DL1036 blower fan motor incorporates several design innovations that enhance reliability and extend service life. Precision-balanced rotors reduce vibration and noise, improving occupant comfort and decreasing mechanical wear on blower components. The motor employs high-quality bearings sized for continuous duty cycles, minimizing maintenance intervals and shuttering the need for frequent replacements. Thermal protection features and robust winding insulation improve tolerance to transient over-currents and heat, safeguarding the motor in heavier-duty applications. The combination of these mechanical advantages with a compact 48 frame results in a blower fan motor that is both sturdy and adaptable.



Electrical and Control Benefits

The DL1036 supports three-speed operation, enabling systems to scale airflow without complex electronic controls. This feature simplifies installation and reduces control system costs while providing effective modulation of airflow for load-matching and quiet operation. For integrators seeking enhanced system-level control, the motor’s straightforward wiring and reliable speed tap selections facilitate easy interfacing with thermostats, relay boards, and manual switches. Additionally, being a CE certified blower motor means the unit has undergone testing to ensure it meets safety and electromagnetic compatibility standards, easing product acceptance in regulated markets. These electrical and control benefits contribute to making the DL1036 an energy-efficient HVAC motor choice.



Durability, Quality, and Manufacturing Excellence

Manufactured by Zhongshan Powerstar Motor Manufacturing Company, the DL1036 benefits from a decade-plus history of motor design and production excellence. The POWERSTAR facility adheres to strict quality control processes, and the DL1036 meets relevant certification criteria including CE and other industry standards where applicable. High-quality materials, traceable component sourcing, and consistent assembly practices ensure the blower fan motor performs reliably over extended service lifetimes. For OEMs and contractors who depend on consistent supply and predictable motor behavior, the DL1036 represents a dependable 1/3 HP motor option with manufacturing provenance.



Installation and Maintenance

The DL1036 blower fan motor is designed for easy installation. The 48 frame fits common motor mounts, and standard terminal arrangements make electrical connections intuitive for technicians. The motor’s three-speed taps are clearly labeled, reducing wiring errors and installation time. Routine maintenance is simplified by the motor’s durable bearings and balanced rotor; typical preventive checks are limited to verifying mounting security, inspecting wiring integrity, and ensuring the motor is operating within rated voltage and current. The maintenance-friendly design equates to lower lifecycle costs and reduced downtime for systems that rely on continuous or frequent blower operation.



Why Choose POWERSTAR’s DL1036 Blower Fan Motor

Choosing the DL1036 means selecting a blower fan motor that aligns with performance, efficiency, and compliance objectives. As a 1/3 HP motor with 1075 RPM nominal speed, 115V operation, and a 5.0A rating, it provides an optimal balance of power and economy for blower applications. The three-speed capability delivers operational flexibility and potential energy savings, and the CE certified blower motor designation ensures suitability for markets that demand recognized safety and EMC standards. Backed by POWERSTAR’s manufacturing experience and quality controls, the DL1036 is a reliable energy-efficient HVAC motor choice for contractors, OEMs, and building owners.



The DL1036 blower fan motor from POWERSTAR is a thoughtfully engineered 1/3 HP motor designed to meet the needs of modern HVAC and ventilation applications. With a compact 48 frame, three-speed control, 1075 RPM performance, and CE certified blower motor compliance, the DL1036 provides reliable airflow management while promoting energy-efficient HVAC motor operation. Whether used in new equipment, retrofits, or custom blower assemblies, this 1/3 HP motor delivers the durability, control, and efficiency that professionals expect from POWERSTAR. Choose the DL1036 blower fan motor for dependable performance, simplified installation, and total cost-of-ownership advantages in your next blower or ventilation project.




More Products

  • Ac Electric Exhaust Fan Motor Blower Motor Big Fan Motor

    Ac Electric Exhaust Fan Motor Blower Motor Big Fan Motor

  • 220V 50/60Hz Air Conditioner Motor Ac Fan Motor Water Cooler Motor

    220V 50/60Hz Air Conditioner Motor Ac Fan Motor Water Cooler Motor

  • 3.3 Inch AC Motor-3 for Axial Flow Fans

    3.3 Inch AC Motor-3 for Axial Flow Fans

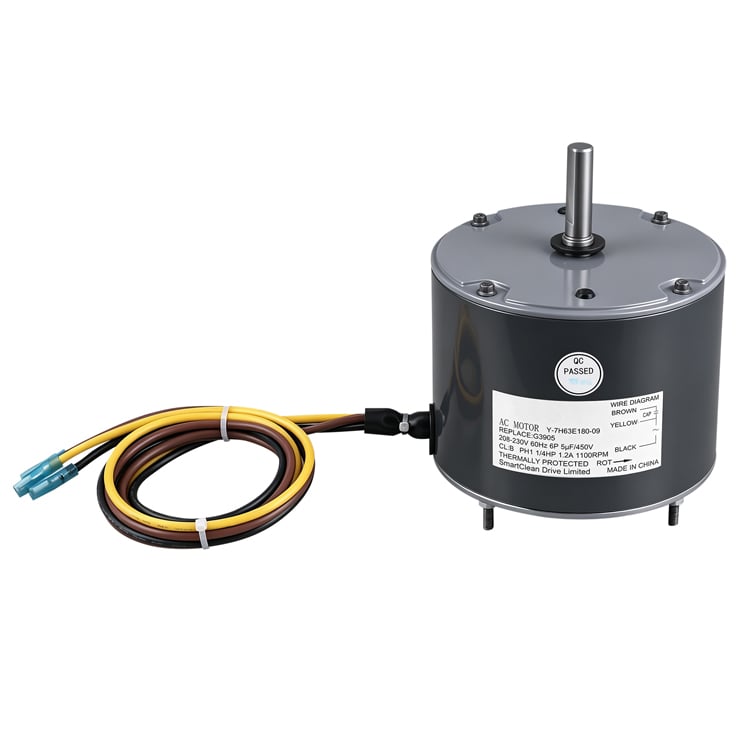

  • 5KCP39EGS070S Condenser Fan Motor 1/4 HP 1100 RPM 208-230V AC Fan Motor
